Economical Vertical L-Bar Sealer Shrink Machine

GPL-5545DC+GPS-5030LW

This is an economical automatic sealing, cutting and shrinking machine designed for the research, development and production of products that require coating heat shrinkage. The cylinder drives the cutter to vertically lift, the sealing is fine and firm, and the whole machine automatically sends film punching, auto film sealing and cutting, only need to manually adjust the film guiding system and the feeding conveying platform, the speed is up to 25 pcs/min, the packaging effect is smooth, suitable for products of different widths and heights, widely used in medicine, food, Books, daily chemicals, automobiles, cables, electronics and other large-scale products shrink packaging.

Max Speed

80pcs/min

Packing Size

W+H≤380mm, H<100mm H+L<450mm, L≥100mm

Smart touch screen: Using the touch screen control panel, setting and adjusting parameters is convenient and quick, and it only takes a few minutes to learn;
Vertical upper and lower sealing and cutting knife design: According to the features of the film, the cutter is driven vertically up and down by a cylinder, the incision is constant temperature, and the sealing is thin and firm.
Controllable Film Length: The feeding length control is combined with the electric sensor and the timer to effectively control the length of the film and save consumables;

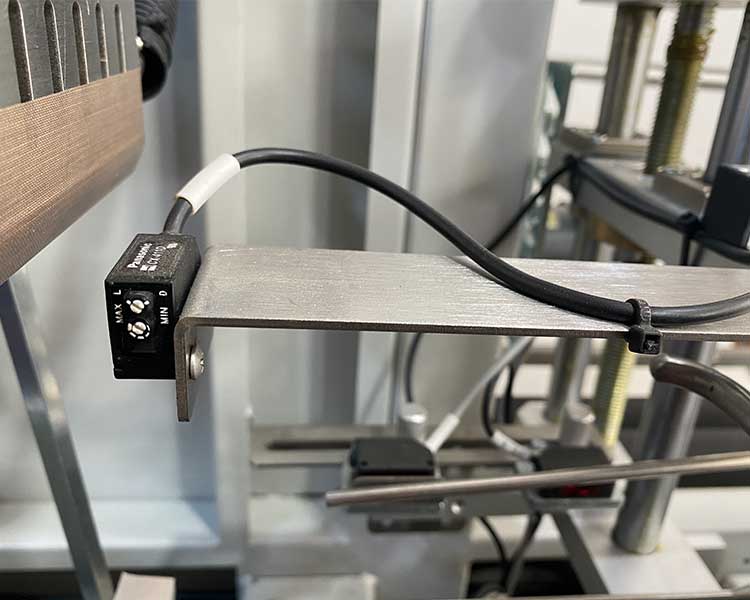

Photoelectric automatic induction: Equipped with automatic light sensor, automatic identification of packaging, accurate film cover, anti-miscut;
Pneumatic control: The cylinder is used to control the cutter, and the action is flexible and the cutting edge is accurate;
Packaging Effect: The sealing line is thin and firm, and the heat shrinkable packaging effect is beautiful, smooth, and wrinkle-free, ensuring that the product is not damaged during storage and transportation.

MODEL	GPL-5545DC	GPS-5030LW
Film	POF	POF
Packing speed	10~25pcs/min	20~80pcs/min
Packing size	W+H≤380mm, H<100mm H+L<450mm, L≥100mm	W≦400mm H≦250mm W+H≤480mm
Cutter size/Tunnel size	Cross cutter: 450mm Vertical cutter: 555mm	L: 1500mm W: 500mm H: 300mm
Max temperature	240°C	200°C
Electrical	220V 50-60Hz 1 Phase	220V/380V 50-60Hz 3 Phase
Power	2.5KW	16KW
Max current	6.5A	25A
Air compressing	0.6~0.85MPa	/
Table height	850+30mm	850+30mm
Machine Dimension	L1740×W1265×H1310mm	L1850xW1095×H1325mm
Machine Weight	300kg	650kg
