Remote Control Fully Automatic Pallet Wrapping Machine
Remote Control Fully Automatic Pallet Wrapping Machine

Remote Control Fully Automatic Pallet Wrapping Machine

GP1800FZ

Automatic Remote Controlled Pallet Wrapper is fitted with automatic film apply/cut unit and remote control device. An operator is able tostart and stop the machine while operating a forklift. The product is the best standalone wrapper forenhanced worker efficiency and reduced labor.

Max Speed

10-30 Pallet/hr

Maximum pallet size

L 500-1200mm×W 500-1200mm×H 500-1800mm

  • Fully Automatic
    The entire winding process does not require human involvement, which is safe and efficient. Reduce labor intensity and effectively use human resources.

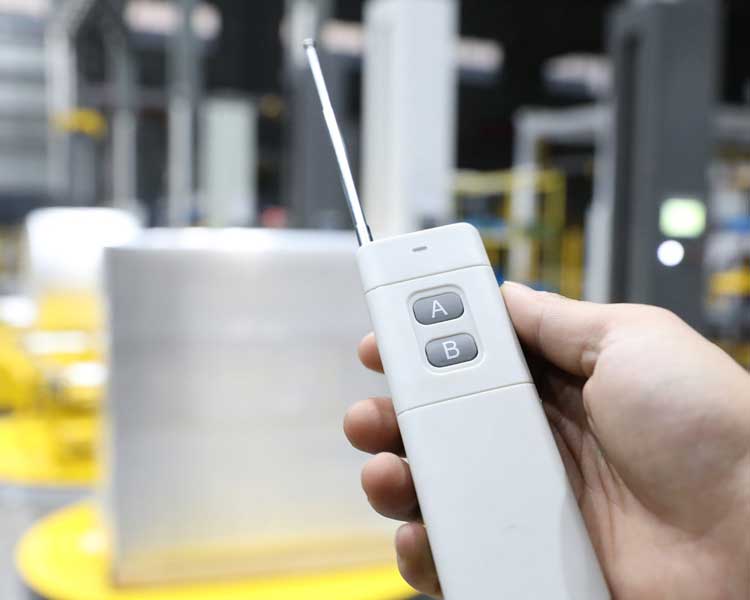

  • Remote Control
    Customers only need to press the start button on the remote control, and the equipment can automatically carry out the winding operation and automatically cut the film at the end.
  • Turntable Drive
    Turntable chain drive, slow start, slow stop, automatic reset; turntable speed 0~12 rpm variable frequency speed regulation.
  • Thin Film System
    The open-door film holder makes it more convenient to wear the film. The winding numbers on the top and bottom are individually adjustable. The film follow-up system can automatically feed the film.
  • Control System
    PLC programmable control, the number of winding layers and times can be changed, the photoelectric switch automatically senses the height of the goods,Upper and break film, automatic control of stroking process.
Model
GP1800FZ
Spare Parts
Brand
Maximum wrapping speed
10-30 Pallet/hr
Inverter
SIEMENS(Germany)
Maximum pallet size
L 500-1200mm×W 500-1200mm×H 500-1800mm
Position sensor
SIEMENS(Germany)
Maximum Wrapping Height
2000mm
PLC
SIEMENS(Germany)
Turntable Speed
0-12pm
Travel Switch
SCHNEIDER(French)
Turntable Size
1650mm(1800mm,2000mm,optional)
Motor
ZHONGDA(China)
Machine Power
1.35KW
Relay
OMRON(Japan)

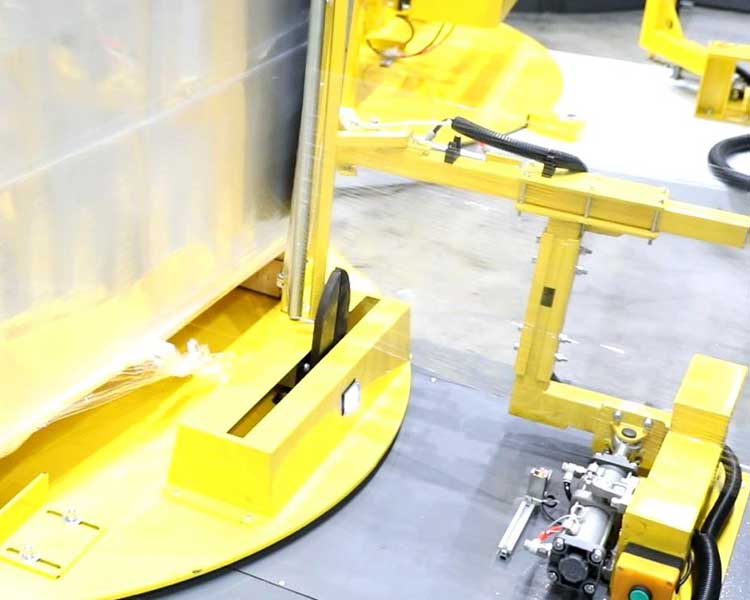

Film Cut and Clamp
Fully Automatic
Touch screen
SIEMENS(Germany)
Max Load Weight
1500KG
Switch
SCHNEIDER(French)
Standard Film Width
500mm
Photoelectric sensor
PEPPERL+FUCHS(Germany)
Constant Film Delivery Force
Standard
Terminal block
Weidmuller(Germany)
Standard Pre-Stretch
250%
24V power supply
OMRON
Film Capacity
250mm Diameter
Up&down Drive system
Up&down Drive system
Fix Film on Pallet
Automatic
OPTIONAL FUNCTION
Roping system
Have
Ramp
Optional
Muti-layer function
Have
weighing scale
Optional
Machine Size
2750*1650*2350mm
Top pressure function
Optional
Machine weight
700KG
Anti-explosion
Optional
Voltage
220 V 60hz
