collaborative robot palletizer
collaborative robot palletizer

collaborative robot palletizer

GPM—R30GD

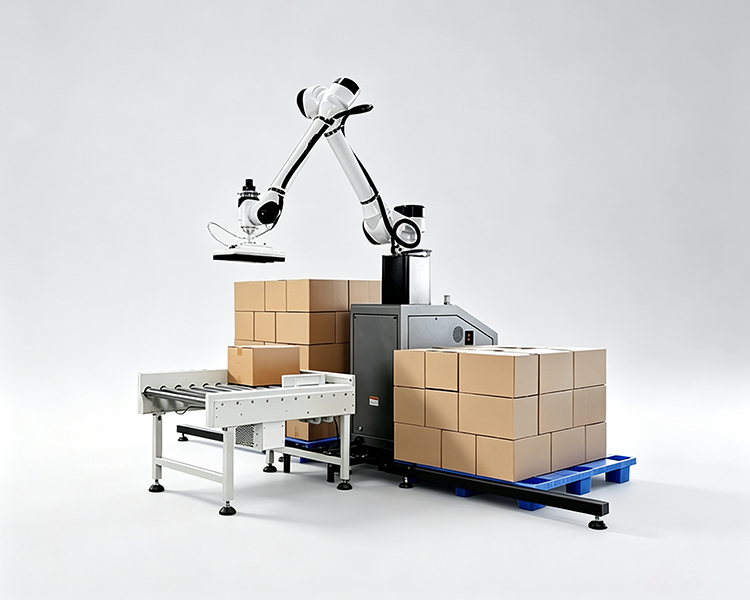

The portable collaborative robot palletizer works closely with human workers to improve production efficiency and flexibly adapt to different tasks. It is equipped with safety sensors to create a safer and more efficient working environment for workers. It has a delicate and beautiful appearance and is easy to adjust. This equipment uses a touch screen to achieve intelligent operation management, which is simple and easy to master. It can greatly reduce the number of workers and reduce labor intensity. It can be used independently or in conjunction with automatic palletizers and pallet conveyors to realize a fully automatic palletizing system. It is widely used in the palletizing process of many industries, such as cartons, medicines, daily necessities, food, beverages, cosmetics, metal products, etc.

Palletizing speed

8-10 boxes/minute

Applicable pallet size

L: 120-600mm W: 80-600mm H: 120-600mm

Intelligent collaboration: self-developed kernel operating system, fast switching of multiple functional scenarios, achieving true human-machine collaboration, and secondary development.
Programming-free one-button start: programming-free, automatic palletizing, visual palletizing, multi-box & continuous box palletizing, setting new paths within 5 minutes, and up to 800 palletizing paths;
Compact and powerful: lightweight model, light volume, large load capacity, load up to 30KG, covers an area of ​​6 square meters (including double stacking), and can be easily used upstairs.
Safe and stable: with international safety CE certification, box drop detection, box pressure detection and dynamic radar protection, optional three-sided radar protection electronic fence or grating protection fence, with high reliability and safety;
Cost-effective: fixed model, lower maintenance cost.
High compatibility: customizable, strong flexible operation ability, can be switched and set at any time according to production needs and site needs; can meet the requirements of different sizes of cartons and different palletizing structures.

MODEL GPM-R30GD
Palletizing speed 8-10 boxes/minute
Load 30KG
Working radius

2000mm

Machine height

2850mm

Arm length 2000mm
Palletizing height

300-2200mm

Maximum pallet size

1200mm*1200mm*140mm

Area

6㎡

equipment weight

550kg

temperature range

0-55°C

Rated voltage

220v

equipment power

2500-3300w

Protection level

IP54

Repeatability

±0.01mm

Compatible size

L: 120-600mm W: 80-600mm H: 120-600mm
