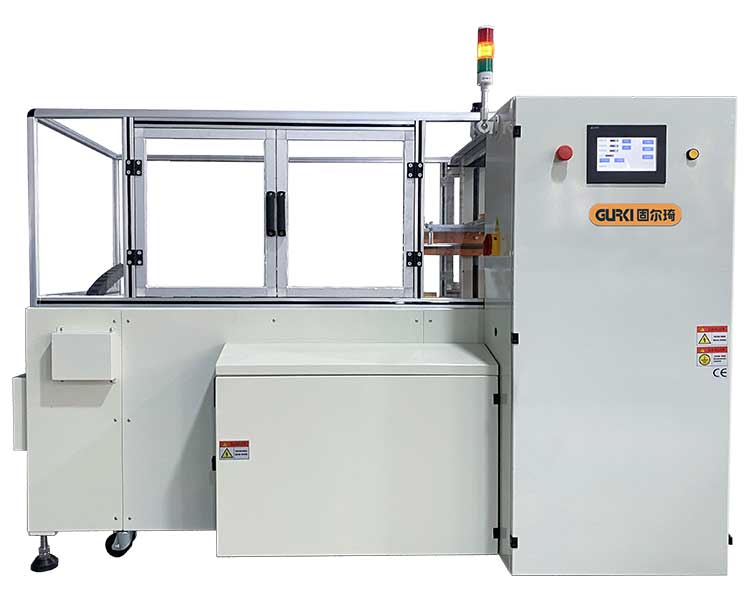

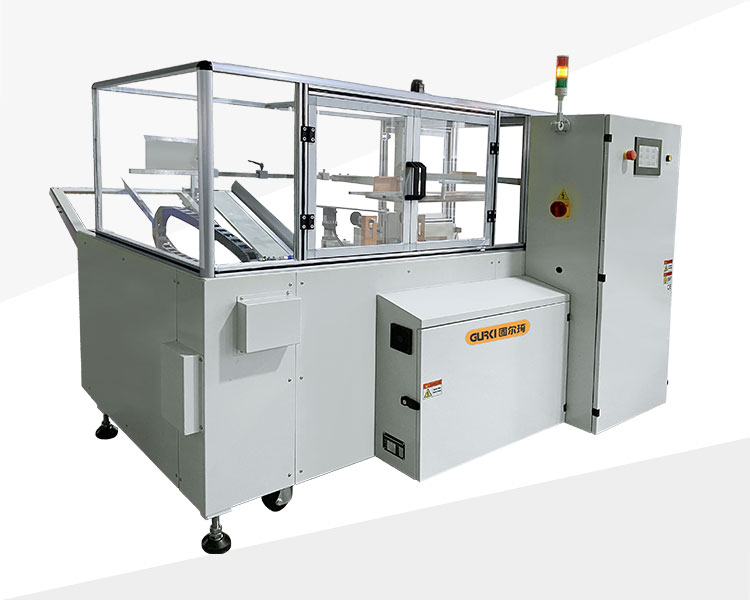

Fully Automatic Servo Carton Erector
Fully Automatic Servo Carton Erector

Fully Automatic Servo Carton Erector

GPK-40I

Fully Automatic Servo Carton Erector is a device that is automatically grasped by suction cups, can automatically adjust the size of the carton by one-key switching, and automatically form into one. Time; the whole machine adopts the electric eye automatic induction, servo and drive control unpacking design, the unpacking speed is faster and more stable, the safety protection door is installed, and the tape can be changed after opening the door, which is more convenient and worry-free; at the same time, the whole machine adopts strict Production process parts and servo drive unpacking, the speed is up to 12 boxes/min, the carton is automatically picked up and formed, and the automatic alarm prompt function of broken tape and no tape is added. This unpacking machine has been widely used in food, medicine, and beverages. , tobacco, daily chemicals, electronics and other industries.

Video Send Your Inquiry Now Get Best Quote

Max Speed

12ctns/min

Packing Size

L250-460mm×W150-400mm×H100-400mm

  • High unpacking efficiency: Servo control system, one-button switching can automatically adjust the size of the carton, unmanned operation in the whole process, fast and stable unpacking, 12 cases/min.
  • Durable parts: Use durable parts, electrical components and pneumatic components.
  • Can be used together:It can be used for stand-alone operation and can also be used with automatic packaging lines.
  • Save labor: The packaging of goods is completed by machines instead of labor.
  • Safer: Add a broken tape alarm prompt, and the door will automatically stop to avoid accidental operation.
  • Simple operation: Simple operation interface, automatic storage of carton database, convenient to retrieve different carton specifications.
Model GPK-40I
Carton Opening Speed 12ctns/min
Carton Size L250-460mm×W150-400mm×H100-400mm
Power Supply 220V 50/60Hz 1Phase
Power 2050W
Adhesive Tape Width 60/75mm
Carton Storage Quantity 80-100pcs (800-1000mm)
Air Consumption 45ONL/min
Air Compressing 6kg/cm3
Table Height 620+30 mm

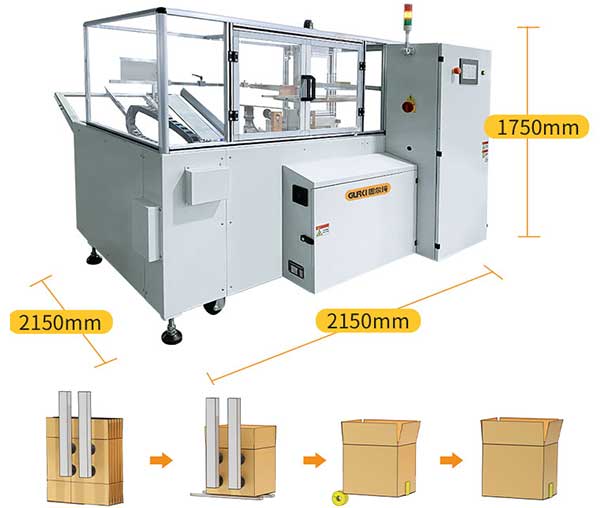

Machine dimension L2150mm×W2150mm×H1750mm
Machine Weight 450Kg

This carton erector has been widely used in food, medicine, beverage, tobacco, daily chemical, electronics, and other industries.

Customized to your needs • Individual and flexible.

Our variety of case handling equipment ranges from standard machines that can erect up to 8 boxes per minute all the way to high-speed case erectors that can erect 50 boxes per minute and can be customized for your application.

Here are some things you can expect:

·A review of your current packaging processes and suggestions for improvements.
·A plan for how to right-size machine platforms for speed and complexity to match your current—and future—production demands.
·Examples of how packaging automation was successfully implemented in businesses similar to yours.
·Suggestions for new packaging equipment that will dramatically increase productivity and efficiencies.
