Automatic edge sealing and shrinking packaging machine
Automatic edge sealing and shrinking packaging machine

Automatic edge sealing and shrinking packaging machine

GPL-5545CI+GPS-5030LW

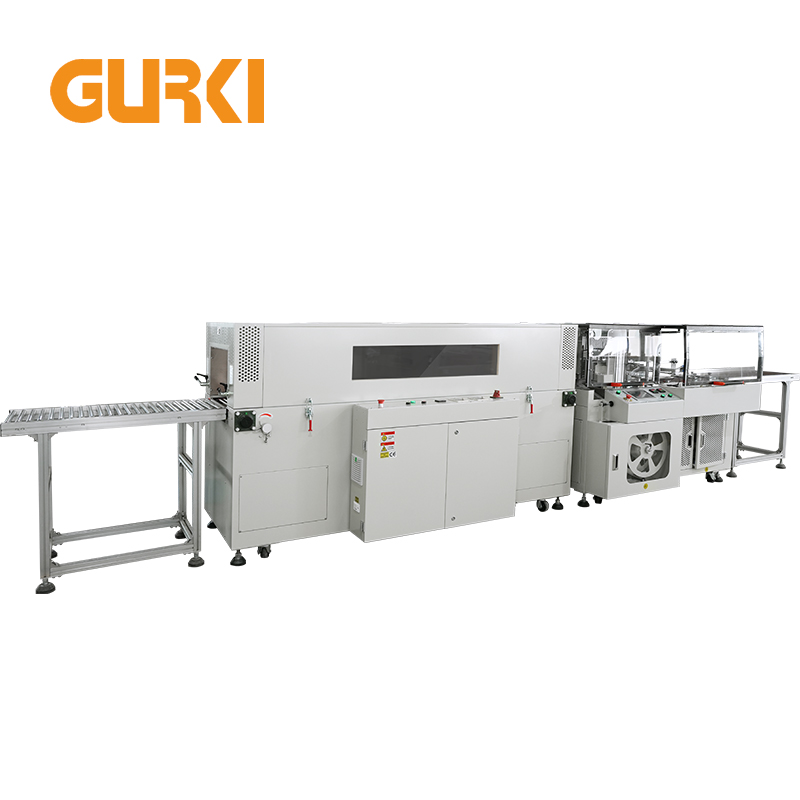

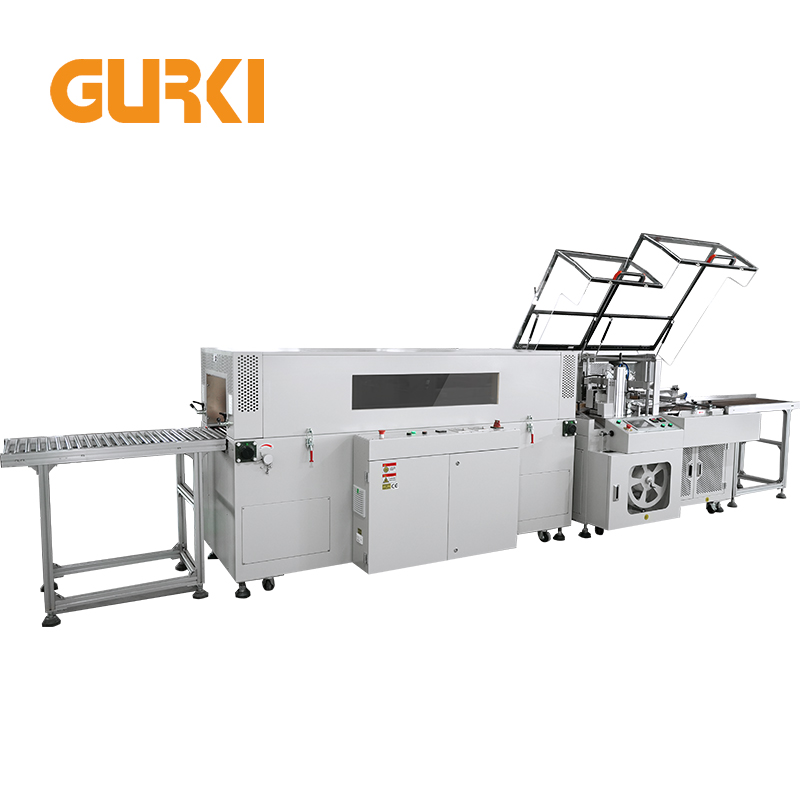

The auto side-sealing shrink packaging machine is a medium-speed automatic sealing, cutting and packaging machine designed for mass production. The whole machine is equipped with a PLC program system. Feeding length, automatic film sealing, cutting and shrinking of the product, detection switch control the motor to automatically rewind the waste film. In order to realize the features of unmanned automatic shrinking, the machine has high working efficiency and is suitable for packaging products of various sizes. It is widely used in cosmetics, aluminum, pipes, printing, photo frames, electronics, daily chemicals, and other mass-production industries.

Max Speed

60pcs/min

Packing Size

W+H≤400mm, H≤170mm, L≥100mm

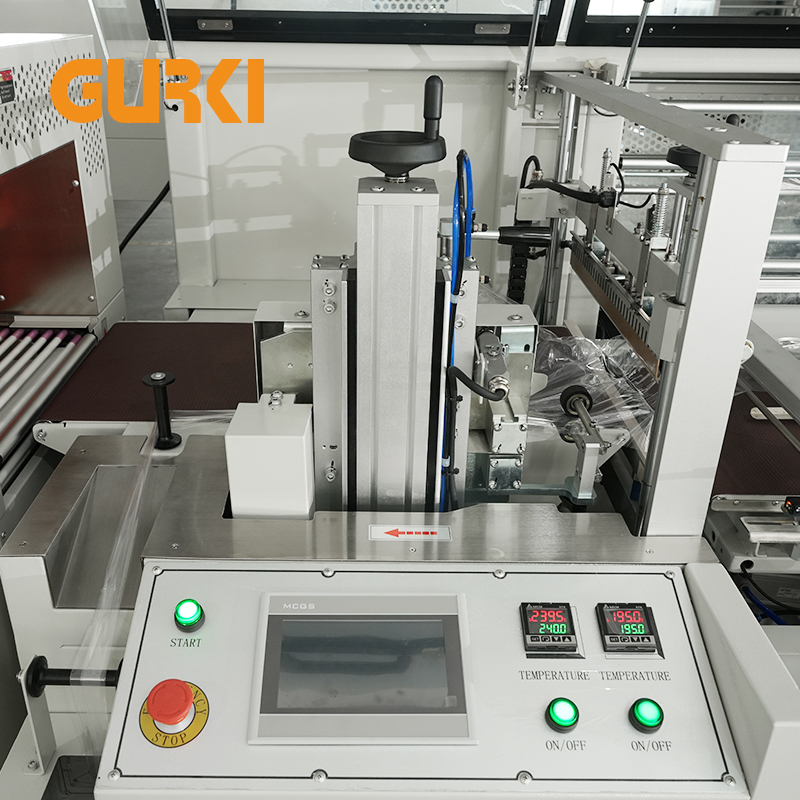

  • Siemens PLC program control: Manufactured by strict production process, the internal circuit adopts anti-jamming technology and Siemens PLC control program, which has accurate position and temperature control, stable operation and durability.

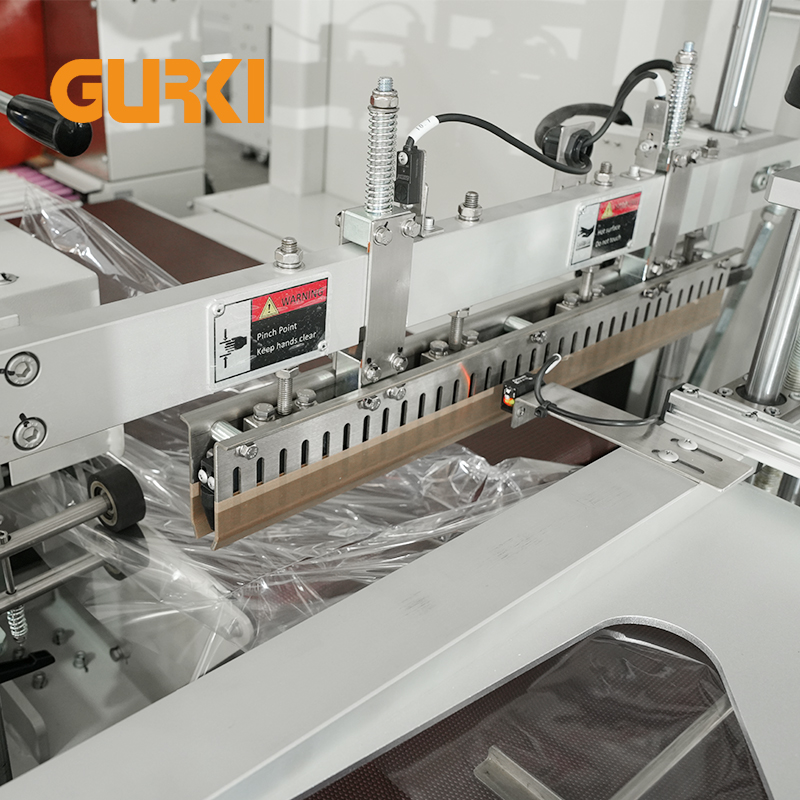

  • Constant temperature sealing cutter: The cutter is not a mucous membrane, does not break, and the sealing line is thin and firm.
  • Visual window shrinking machine: With visual window shrinking, the shrinking effect is clear at a glance, which is convenient for users to watch.

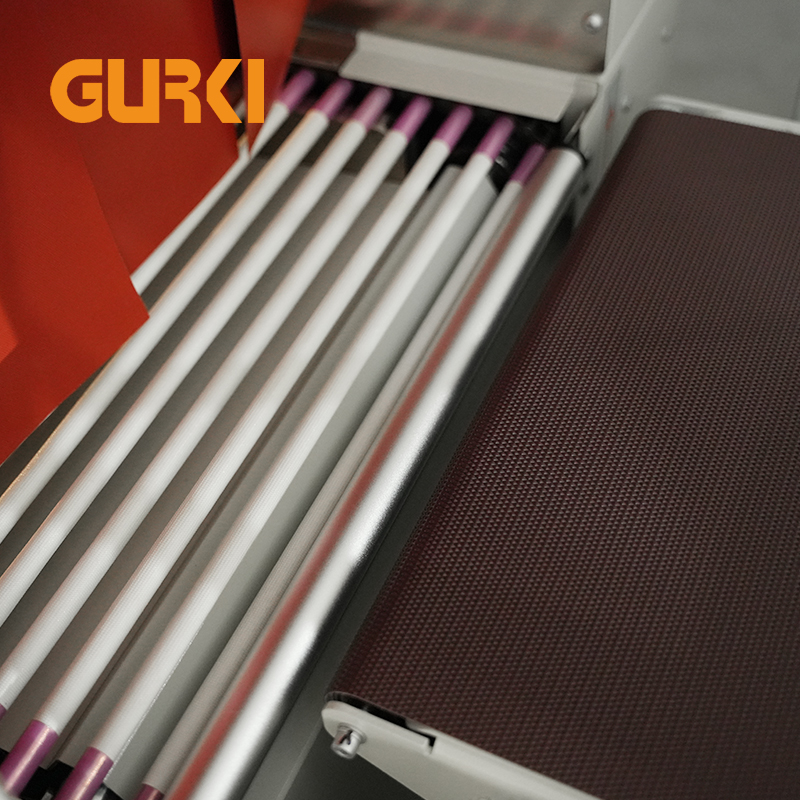

  • High-temperature resistant silicone tube: The furnace cavity is equipped with a number of high-temperature resistant silicone tubes, which are heated at a constant temperature and have a long service life.
  • Waste film device: Equipped with an automatic waste coiling device, controlled by a separate motor, the waste is easy to disassemble.
  • Convenient adjustment: When the size of the package is changed, manually adjust the adjustment handle without changing the mold and bag maker.
MODEL GPL-5545CI GPS-5030LW
Film POF POF
Packing Speed 3~35pcs/min 20-60pcs/min
Packing Size

W+H≤400mm,H≤170mm,L≥100mm

L≤500mm,W+H≤450mm,w≤350mm,

H≤230mm

Cutter size / Tunnel size 490mm L1500×W500×H300mm
Max Temperature 280°C 200°C
Electrical 220V/380V 50-60Hz 3 Phase 220V/380V 50-60Hz 3 Phase
Power 2KW 15.5KW
Max Current 6.5A 25A
Air Compressing 0.6--0.85MPa /
Table Height 850-900mm 850-900mm
Machine dimension L1720*W1465*H1320mm L1850×W1095×H1325mm
Machine Weight 530 kg 500 kg

GURKI shrink packaging machines deliver an excellent combination of price, versatility and customer support. With a comprehensive line of durable shrink wrapping machines, we offer the packaging solution you require and deliver the value you seek.

Customized to your needs • Individual and flexible.

From l-bar sealers to high-speed automatic shrink packaging systems, GURKI offers a wide range of shrink packaging machines. This enables us to fit the right mix of features and options to suit any customer’s production needs.

Here are some things you can expect:

·A review of your current packaging processes and suggestions for improvements.
·A plan for how to right-size machine platforms for speed and complexity to match your current—and future—production demands.
·Examples of how packaging automation was successfully implemented in businesses similar to yours.
·Suggestions for new packaging equipment that will dramatically increase productivity and efficiencies.

We have really great clients! More than 10000 companies work with GURKI as their packing machine manufacturer of choice.

The GURKI Advantage

LEARN MORE

Request a Quote for Your Packaging Project Today

Purchasing packaging machine can be complex. Here are some tips to avoid pitfalls when selecting a supplier for high-quality equipment and excellent after-sales service.

  • Research and Check Reviews
  • Learn More About Manufacturers
  • Arrange On-Site Visits
  • Ensure Thorough After-Sales Support
  • Timely Delivery
