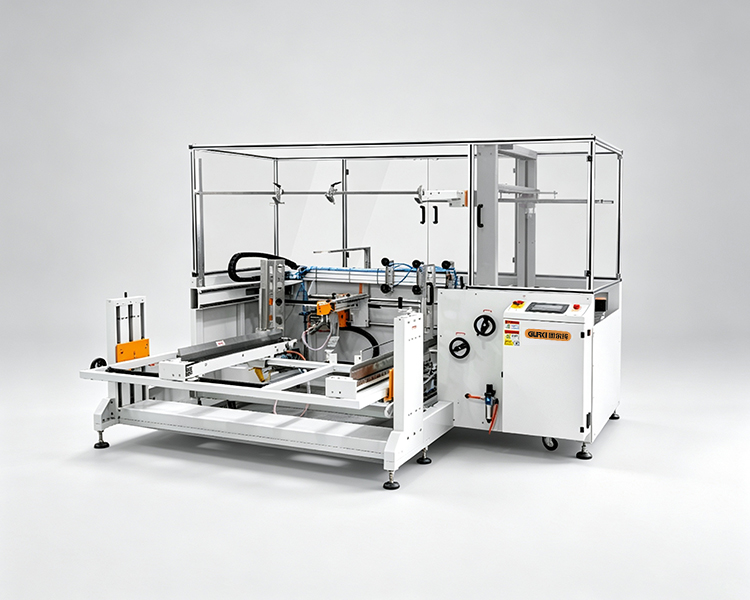

Automatic carton erector
Automatic carton erector

Automatic carton erector

GPK-60

The automatic carton erector changes the traditional trough design and adopts durable parts and electrical components. The accessories have stable performance, strict structural design, and no vibration during operation. It uses a horizontal trough design with a cardboard capacity of up to 100. At the same time, the enlarged carton opening design can open cartons up to 80cm long. The carton sealing and bottom folding are completed in one go. It is widely used in food, medicine, beverage, tobacco, daily chemicals, electronics and other industries.

Max Speed

6-8 cases/min

Packing Size

L300-800mm*W200-600mm*H200-600mm

  • Replace tape quickly: Equipped with protective door, replacing tape conveniently and safely as the door open.
  • Push carton board automatic buckle: Material trough fixed bracket with push carton board automatic buckle, lock material trough which is convenient for user.
  • Mechanism of folding front and rear board: Upgraded mechanism of folding front and rear board, cartons can be formed faster, stable and endurable.
  • Siemens PLC: The internal electric circuit adopts anti-jamming technology and Siemens control program, which can control position accurately and work stable for long time.
  • Endurable conveyor belt: Using endurable conveyor belt with strong friction which can transport steadily.
  • Automatic alarm: When tape broken or used up, the alarm will make sounds automatically. It’s convenient for user to change and adjust in time.
MODEL GPK-60
Carton Opening Speed 6-8 cases/min
Carton Size

L300-800mm*W200-600mm*H200-600mm

Power Supply

220v/380v50/60HZ

Power 240W
Adhesive Tape Width 48/60/75mm (Choose one type)
Carton Storage Quantity 80-100pcs (1000mm)
Air Consumption 450NL/min
Air Compressing 6kg/cm³
Table Height 780+30 mm
Machine dimension L2850×W2550×H1950mm
Machine Weight 900KG
