Automatic corner and side sealing machine
Automatic corner and side sealing machine

Automatic corner and side sealing machine

GPH-50

The automatic corner sealing machine GPH-50 which is suitable for all types of cartons, after being sealed in the first half(upper cover), the carton is pushed by the L-shaped corner to seal the four corners. There is no need to manually adjust the size of the carton when the carton size changes, because the electric eye will automatically sense the carton, and then the cylinder can automatically move to adjust the carton size intelligently. The carton is driven by the upper and lower belts. It is fast and stable when sealing, and has no folds at the four corners.

Max Speed

360Pcs/h

Packing Size

L320-500mm×W200-500mm×H180-500mm

  • The sealing machine is designed to be simple in operation, economical and durable, safe, and low in failure rate. It intelligently adjusts the width and height of the machine according to the specifications of the carton. It is suitable for the same type of carton sealing at the same time.

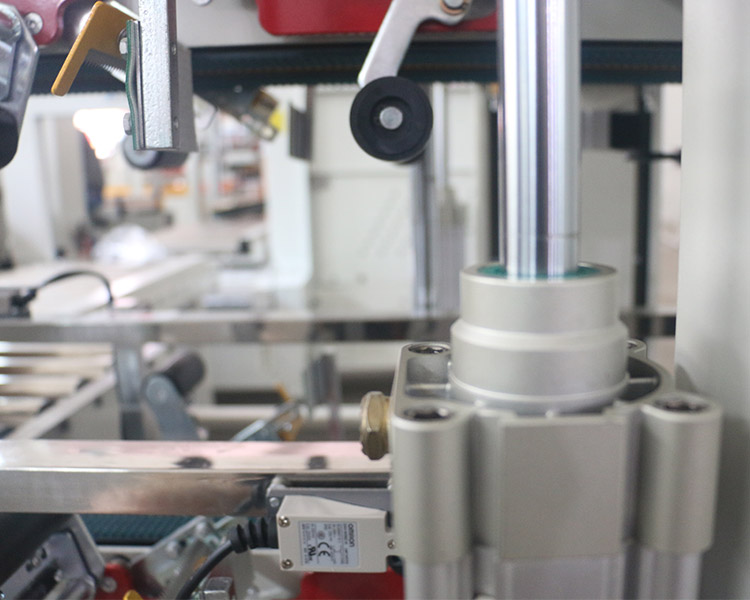

  • After the carton passes through the upper and lower sealing, it then enters the 90 degree corner mechanism. When the photoelectric detection detects the carton, the machine can automatically adjust the width and height according to the carton specification.
  • The four corners and sides of the carton are automatically sealed and smoothed at the same time. No need to manually adjust the machine, simple, convenient and fast. The sealing effect is smooth, standardized and beautiful
  • Using this sealing machine instead of labor can not only improve production efficiency (increased by 30%), but also reduce costs and reduce 2 to 3 packers. This has standardized packaging and saved consumables (saving 5-10% of consumables).
  • This machine adopts PLC control, the operation is more simple, the performance is more stable, and the applicability is strong. It can be combined with GPA, GPB and GPC models to complete the "H" type sealing.
MODEL GPH-50
Packing speed 300-360Pcs/h
Carton Size L320-600mm×W200-500mm×H180-500mm
Power Supply 110/220V 50/60Hz 1Phase
Power 1050W
Adhesive Tape Width 48/60/75mm
Air Consumption 400NL/min
Air Compressing 0.6Mpa
Table Height 600+50mm
Machine Dimension L2100×W1300×H1580mm
Machine Weight 450KG
