High-speed Carton Erector
High-speed Carton Erector

High-speed Carton Erector

GPK-40H50

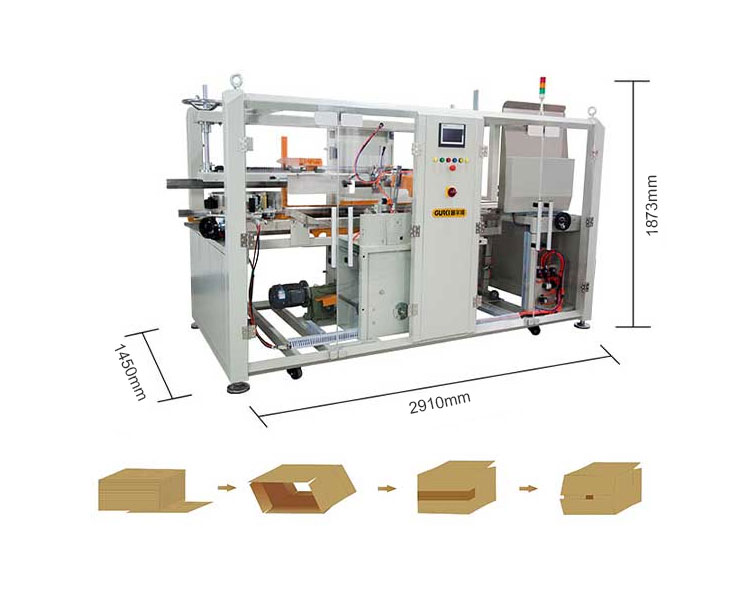

The high-speed carton erector is a new machine designed by our company for large-scale warehousing, logistics and other industries. Cam drive system and the connecting rod are used to control the entire machine motion instead of manual operation. Sucking cartons, forming, folding and sealing the bottom can be completed at one time, and the producing speed can reach 50 ctns/min. The machine structure design adopts a 45° oblique angle without ash drop design and automatic warning reminder function of broken tape or no tape, which is more convenient for maintenance. The installation of transparent protective doors is convenient and fast for changing the tape. This carton erector is also widely used in food, medicine, beverage, tobacco, daily chemical, electronics and other industries.

Max Speed

50ctns/min

Packing Size

L250-450×W150-400×H150-300mm

  • Easy maintenance.:The machine structure design adopts a 45° oblique angle without dust, which is easy to maintain.
  • Durable spare-parts: Use famous brand spare-parts like Siemens, Schneider to ensure accurate erector molding control, which is stable and durable.
  • High speed:The machine adopts a cam drive system combined with a connecting rod to control the entire machine motion, and the producing speed reaches 50 ctns/min.
  • Simple operation: Adopt PLC+ man-machine interface control, easy operation, simple maintenance and stable performance.
MODEL GPK-40H50
Carton Opening Speed 40-50 cases/min
Carton Size L250-450×W150-400×H150-300mm
Power Supply 220V 50Hz 1 Phase
Power 1000W
Adhesive Tape Width 48/60mm (Choose one type) 2 inch ,2.5 inch
Carton Storage Quantity 80pcs (800mm)
Air Consumption 450NL/min
Air Compressing 6kg/cm³
Table Height 960+40 mm
Machine dimension L2910xW1450xH1873mm
Machine Weight 1200KG

This carton erector has been widely used in food, medicine, beverage, tobacco, daily chemical, electronics, and other industries.

Customized to your needs • Individual and flexible.

Our variety of case handling equipment ranges from standard machines that can erect up to 8 boxes per minute all the way to high-speed case erectors that can erect 50 boxes per minute and can be customized for your application.

Here are some things you can expect:

·A review of your current packaging processes and suggestions for improvements.
·A plan for how to right-size machine platforms for speed and complexity to match your current—and future—production demands.
·Examples of how packaging automation was successfully implemented in businesses similar to yours.
·Suggestions for new packaging equipment that will dramatically increase productivity and efficiencies.
